Product Details:
Hot-Dip Galvanized Steel Grating, Also Known As Hot-Dip Galvanized Steel Grating, Is A Grid-Shaped Building Material Made Of Low Carbon Steel Flat Steel And Twisted Square Steel Welded Horizontally And Vertically. Hot-dip galvanized Steel Grating Has Strong Impact Resistance, Strong Corrosion Resistance, Heavy Load Capacity, Elegant And Beautiful Appearance, And Excellent Performance In Municipal Roadbed And Steel Platform Construction Projects.
Due To Its Extremely High-Cost Performance, Hot-Dip Galvanized Steel Grating Is Widely Used In Construction Projects Of Paved Ditch Roads On New And Old Roadbeds. The Surface Of Hot-Dip Galvanized Steel Grating Has Undergone Special Hot-Dip Galvanizing Treatment. It's Chemical And Physical Properties Are Stable And It Is Not Susceptible To Corrosion And Oxidation By Air And Microorganisms. It Can Significantly Enhance The Trench Load Capacity.
Prevent Collapse. The Hot-Dip Galvanized Steel Grating With A Spacing Of 3 Cm Between Flat Steel Bars Has Greater Impact Resistance And Has The Characteristics Of The Largest Span. The Longer Its Service Life Is, Generally In The Range Of 40 To 50 Years. If No Damaging Factors Are Involved, Hot-Dip Galvanized Steel Grating Is A Very Good Steel Frame Structure And Load-Bearing Platform.
Features And Advantages Of Galvanized Steel Grating:
Corrosion Resistance:
The Galvanized Layer Can Form A Protective Layer On The Surface Of The Steel, Effectively Preventing The Steel From Being Oxidized, Corroded And Worn.
High Strength:
As A Base Material, Steel Has High Strength And Rigidity And Can Withstand Large Loads And Pressures.
Good Anti-Slip Performance:
Galvanized Steel Grating Usually Has More Open Holes, Which Can Increase The Anti-Slip Performance Of The Steel Grating And Avoid Slipping Accidents.
Corrosion Resistance:
The Galvanized Layer Can Form A Protective Layer On The Surface Of The Steel, Effectively Preventing The Steel From Being Oxidized, Corroded And Worn.
High Strength:
As A Base Material, Steel Has High Strength And Rigidity And Can Withstand Large Loads And Pressures.
Good Anti-Slip Performance:
Galvanized Steel Grating Usually Has More Open Holes, Which Can Increase The Anti-Slip Performance Of The Steel Grating And Avoid Slipping Accidents.
During The Production Process Of Galvanized Steel Grating, The Steel Is Heated And Then Immersed In Molten Zinc Liquid For Hot-Dip Galvanizing. During The Galvanizing Process,
A Chemical Reaction Occurs When The Steel Comes Into Contact With The Zinc Liquid, Forming A Zinc-Iron Alloy Layer. This Zinc-Iron Alloy Layer Provides Good Anti-Corrosion Properties And Can Effectively Protect The Steel From Corrosion And Wear.
| Product Name |
Galvanized Steel Grating |
| keywords |
Galvanized Steel Bar Grating |
| Main Materials |
Carbon Steel, Aluminum, Stainless Steel |
| Surface Treatment |
Galvanized |
| Processing Methods |
Welded |

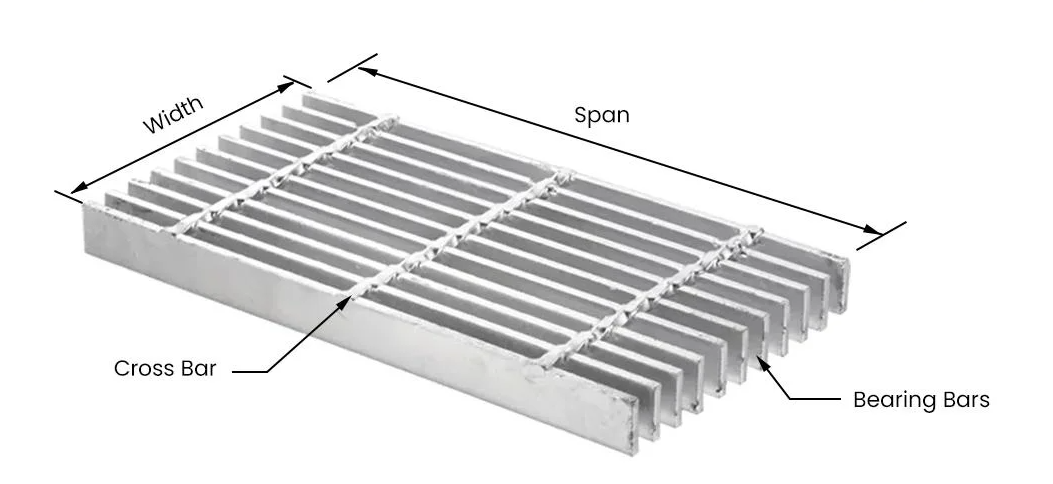

| Common Bearing Bar Spacing |
7/16",1/2",11/16",15/16",19/16" or Customized |
| Common Cross Bar Spacing |
2", 4" in 1" Increment or Customized |
| Bearing Bar Depth |
3/4" to 7" or Customized |
| Bearing Bar Thickness |
1/8" to 1/2" or Customized |

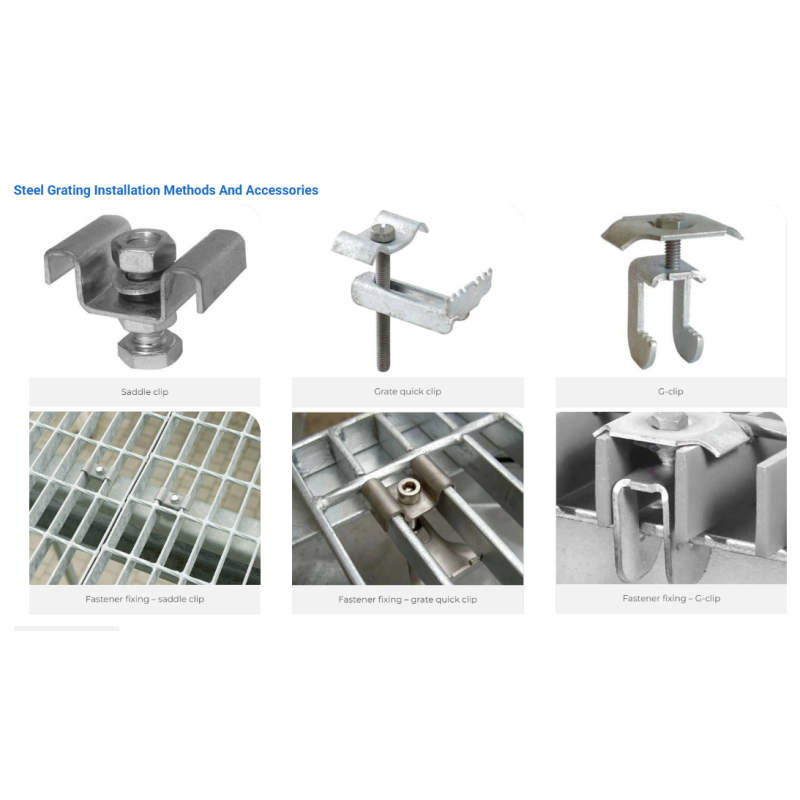

| Anchoring Devices |
Saddle Clips, Weld Lugs, "G" Clips, "J" Clips. |
| Design Style |
Industrial |
| Weight |
Depends on Specifications |
| Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400 |
| Grating Style |
Plain / Smooth, Serrated /teeth, I bar, etc |
| Color |
Silver, Black, Ect, or Customized |
